SHORITSU FORGED STEEL VALVE

SHORITSU VALVE- Ex-stock available in Singapore

PICTORIAL VIEW


SHORITSU Gate Valve

Forged Steel Gate Valve, BB OS&Y Design to API 602 Socket Weld Ends.


SHORITSU Globe Valve

Forged Steel Globe Valve, BB OS&Y

Design to API 602 Socket Weld Ends.


SHORITSU Check Valve

Forged Steel Piston Check Valve Bolted Cover

Design to API 602 Socket Weld Ends

CONSTRUCTION OF SHORITSU VALVE

VALVE

MATERIAL CODE

MATERIAL CODE

  • Gate
  • Globe
  • Check
  • Needle
  • Ball Check
  • Swing Check
  • Spring Check
  • Stop Check

MATERIAL CODE

MATERIAL CODE

MATERIAL CODE

  • Carbon Steel- A105, A350-LF2, A350-LF3
  • Stainless Steel- A182-F304, F304L, F304H, F316, F316L, F316H, F321, F321H, F347, F347H
  • ALLOY STEEL- A182-F1, F5, F9, F11 CL2, F12 CL2, F22 CL3, F5a
  • MONEL 400, 600
  • ALLOY-20 CB3

CLASS

MATERIAL CODE

END CONNECTION

  • 150 CLASS
  • 300 CLASS
  • 600 CLASS
  • 900 CLASS
  • 1500 CLASS
  • 2500 CLASS
  • 4500 CLASS * Special Features

END CONNECTION

END CONNECTION

END CONNECTION

  • FLAT FACE
  • SOCKET WELD
  • SCREWED
  • RAISED FACE FLANGE
  • RING TYPE JOINT
  • PIPE
  • BUTT WELD
  • MALE
  • FEMALE
  • TONGUE
  • GROOVE

NOMINAL SIZE

END CONNECTION

NOMINAL SIZE

  • 1/4"
  • 3/8"
  • 1/2"
  • 3/4"
  • 1"
  • 1-1/4"
  • 1-1/2"
  • 2"
  • 3"

TYPE

END CONNECTION

NOMINAL SIZE

  • BB-OS&Y
  • BB(RJ)-OS&Y
  • LONG BB-OS&Y
  • WB-OS&Y
  • SWB-OS&Y
  • PSB-OS&Y
  • NB-OS&Y
  • ISS

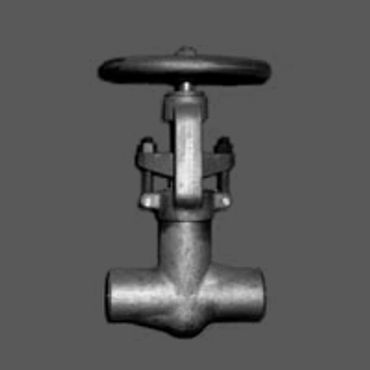

SHORITSU FORGED STEEL CLASS 4500 NON-BONNET TYPE GLOBE VALVE

SHORITSU VALVE - CLASS 4500 NON-BONNET TYPE GLOBE VALVE

*Special Features of Class 4500 Globe Valve

  • THRUST BEARING

It is provided thrust bearings at the top of the yoke sleeve, to reduce the operating force of the handle.

  • INTEGRAL TYPE FORGED BODY

Apply integral type body which cannot occur material defects.

  • YOKE SLEEVE

Made of Aluminum-Bronze which is excellent about the high durability and to eliminate the scuffing.

  • STEM GUIDE

Non-rotating stem design which reduces the operating force of the handle.

  • BACK SEAT - BUSH

Having the certain back-seat function due to backseat-bush which is fixed to the body by means of thread.
